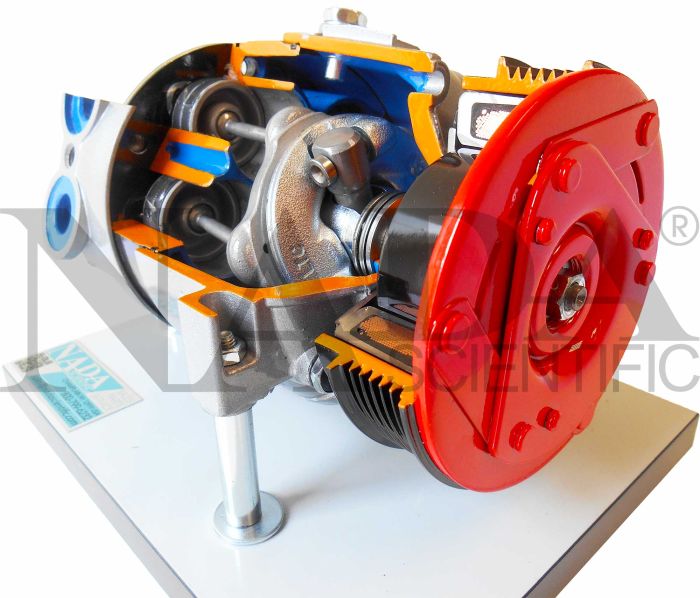

Axial Alternative Compressor Cut-Away, with Variable Displacement
This product is a cut-away of an Axial Alternative Compressor with Variable Displacement. Compressors with fixed displacement differ in terms of the cam, which determines the stroke of the piston that rotates the compressor shaft. The variable displacement compressor is an axial piston design, with pistons driven by a wobble plate or a swash plate.
This product is a cut-away of an Axial Alternative Compressor with Variable Displacement. Compressors with fixed displacement differ in terms of the cam, which determines the stroke of the piston that rotates the compressor shaft. The variable displacement compressor is an axial piston design, with pistons driven by a wobble plate or a swash plate. Since the angle of the plate determines the length of the piston stroke, changing the angle changes the length of the stroke. This, therefore, changes the amount of refrigerant pumped on each stroke.
SPECIFICATIONS:
• Cut-Away of Internal Components
• Color-Coded
• Mounted on Strong Base
• Operates Manually
WEIGHT AND DIMENSIONS:
Size: 20cm x 20cm x 20cm (L x W x H)
Net Weight: 7 kg
Gross Weight: 12 kg
Product Name | Axial Alternative Compressor Cut-Away, with Variable Displacement |
---|---|
PDF Downloads | Product Sheet for N98-ND10652 |
