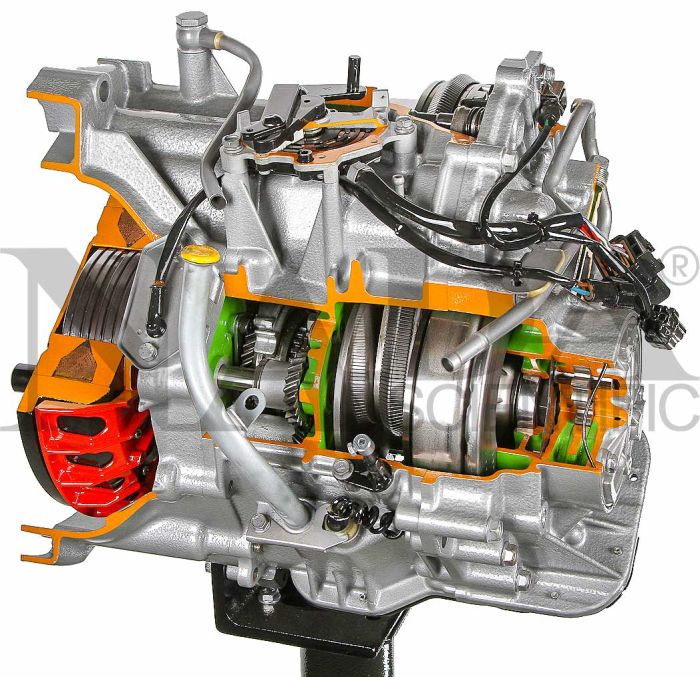

Continuously Variable Transmission (CVT) Gearbox Cut-Away
This product is a cut-away of a Continuously Variable Transmission Gearbox, that can continuously change through an infinite number of effective gear ratios between maximum and minimum values. There are two V-belt pulleys that are split perpendicular to their axes of rotation, with a V-belt running between them. This cut-away has been carefully sectioned for training purposes and professionally painted with different colors to better differentiate the various parts. Many parts have been chromium plated and galvanized for a longer life.
SPECIFICATIONS:
• Electromagnetic clutch
• Forward and reverse insertion lever
• Primary pulley
• Secondary pulley
• Roller belt
• Final reduction unit
• Hydraulic command unit
• Mounted on stand with wheels
• Operated manually by hand crank
WEIGHT AND DIMENSIONS:
Size: 60cm x 50cm x 80cm (L x W x H)
Net Weight: 45 kg
Gross Weight: 75 kg
Product Name | Continuously Variable Transmission (CVT) Gearbox Cut-Away |
---|---|
PDF Downloads | Product Sheet for N98-ND11068 |
