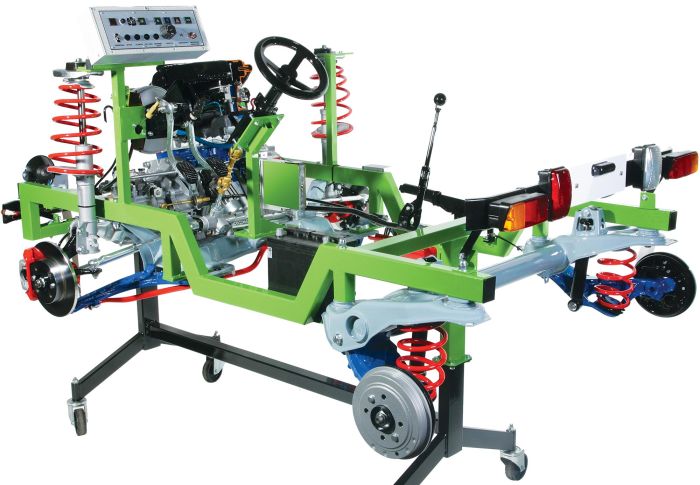

Turbo Diesel Engine Chassis, FIAT, FWD with Lighting System

The FIAT Chassis is a cut-away with FWD and a transversely mounted turbo diesel engine with working lighting system. This cross-sectioned model is mounted on a sturdy stand with wheels and allows you to:

• Observe its electronically powered movement at a reduced speed for easy comprehension.
• Illustrate the components of a functioning lighting electrical system.
• Differentiate each of the components of the engine and the segments attached to the chassis, which have been carefully sectioned for training purposes.
• Educate about all separately painted mechanical segments, including hydraulic power-steering, the radiator, front and rear brakes, and the front and rear suspension among others.
• Expect a longer life for the cut-away due to the many chromium plated and galvanized parts.

SPECIFICATIONS:
• FIAT chassis with FWD (engine transversely mounted)
• Diesel engine displacement: 1700 cu. cm.; 4 cylinders
• Indirect injection with pre-chamber
• Bosch VE rotary injection pump
• Turbo-compressor with waste-gate valve
• Gearbox: 5 forward speeds + reverse + differential
• Hydraulic power steering with double-jointed steering column
• Radiator with electric fan
• Front disc brake
• Rear drum brake
• Independent wheels MacPherson front suspension with oscillating arms
• Rear independent suspensions with coil spring and gas shock absorbers
• Front and rear working light system controlled by a dashboard
• Mounted on a sturdy stand with wheels
• Electrically operated at 120V

WEIGHT AND DIMENSIONS:
Size: 220cm x 160cm x 115cm (L x W x H)
Net Weight: 400 Kg
Gross Weight: 545 Kg
