Turbo Diesel Truck Engine, Inline 4, Indirect Injection

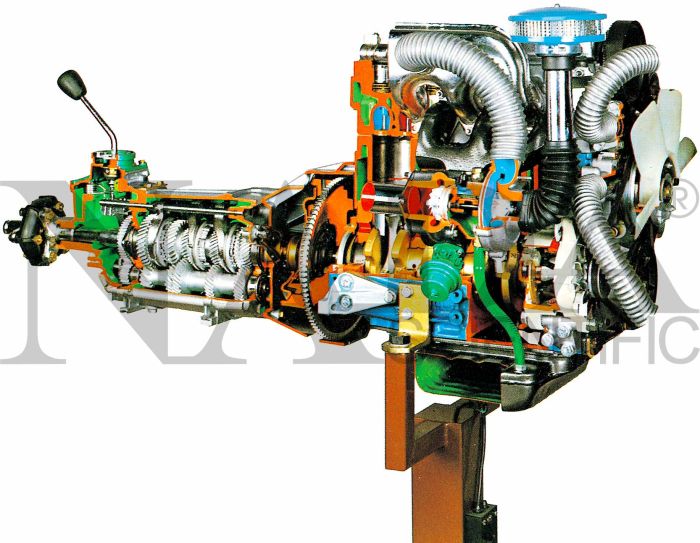

This cut-away is a “Fiat” turbo diesel engine used in cars and cargo trucks with a 4-cylinder inline configuration and indirect injection. The cut-away is mounted on a sturdy stand with wheels and allows you to:
• Observe the electronically powered engine move at a reduced speed for easy comprehension.
• Describe each of the parts, which have been carefully sectioned for training purposes.
• Educate about all separately painted mechanical segments, cross-sections, lubricating circuits, fuel system, cooling system, etc.
• Expect a longer life for the cut-away due to the many chromium plated and galvanized parts.
SPECIFICATIONS:
• 4 stroke engine; Inline 4 cylinder
• Displacement: 2,500 cc
• Indirect injection
• VE Bosch type rotary injection pump
• Overhead camshaft (OHC)
• Distribution through a toothed belt
• Alternator
• Thermostatic valve
• Gearbox: 5 forward speeds + reverse
• Water cooling
• Operates electrically at 120 volts
• Mounted on stand with wheels
WEIGHT & DIMENSIONS:
Size: 85cm x 160cm x 100cm (L x W x H)
Net Weight: 220 kg
Gross Weight: 280 kg
Product Name | Turbo Diesel Truck Engine, Inline 4, Indirect Injection |
---|---|
PDF Downloads | Product Sheet for N98-ND6020 |
