Name Wiring System Trainer, Electronic Ignition
Dimensions No

Wiring System Trainer, Electronic Ignition

SKU: N98-ND9991

Availability: In stock

ASK FOR QUOTE
Add Items to Cart Add To Cart   Add to Quote

Be the first to review this product

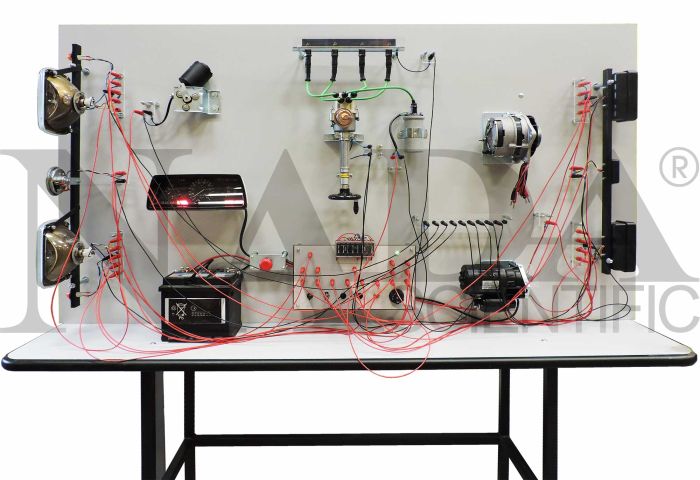

This product is an automotive wiring system trainer with an electronic ignition unit used to study the entire electrical system of a vehicle. It is operated by 120V, mounted on a stand, and easily allows you to:

• Educate your students on how to assemble specific aspects of a vehicles electrical system.

• Troubleshoot instructor produced faults or bad connections in the wiring system.

• Assemble or disassemble its various parts to study the entire system.

SPECIFICATIONS:
• Front and rear lights
• Turn indicators
• Emergency
• Licence plate light
• Horn
• Windshield wiper motor
• Instrument panel
• Battery
• Battery ignition
• Spark plugs
• Coil
• Fuse box
• Starter motor
• Alternator
• Voltage regulator
• Wires with red couplings (positive) 19 gauge
• Wires with black couplings (negative) 10 gauge
• Mounted on stand with wheels

WEIGHT AND DIMENSIONS:
Size: 55cm x 195cm x 205cm (L x W x H)
Net Weight: 100 kg
Gross Weight: 210 kg
