Automatic Polarization System

In stock
SKU
N600-HSV110

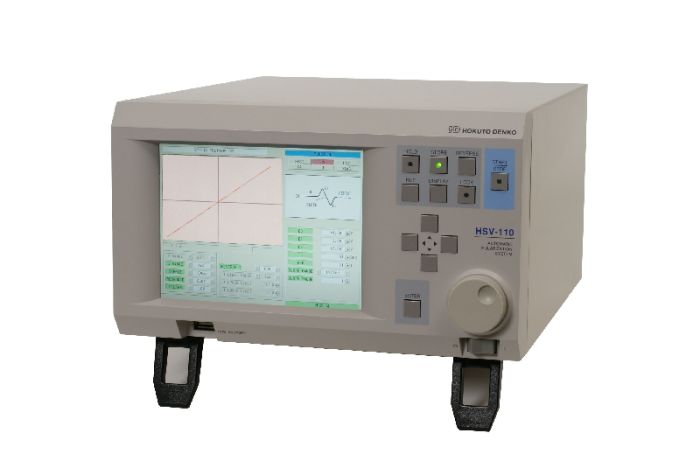

The N600-HSV110 is a compact and high performance potentiostat/galvanostat with LCD monitor and memory function capacilites.

The N600-HSV110 is a compact and high performance potentiostat/galvanostat with LCD monitor and memory function capacilites. Designed to conduct extensive electrochemical measurements such as cyclic voltammetry, this instrument is versatile and comes equipped with a USB connection for immediate data transfer and graphing of results.

Features:
1. Corresponds to 7 kinds of principle measuring methods
   CV Measurement
  • LSV Measurement
  • Single Step Chrono-Ameprometry
  • Single Step Chrono-Potentiometry
  • Double Step Chrono Amperometry
  • Double Step Chrono Potentionetry
  • Rest Potential measurement
2. Can monitor measured wave forms through a color LCD monitor, can be used stand alone.
3. Measured data can be saved into USB memory.
4. Conditions can be altered during the operation. Trial execution of measurement is easily done.
5. Noise is reduced by a digital filter

Settings: [Parameter Guide] Dedicated set screen per selected mode displayed. It is possible to set measuring conditions easily, following the parameter guide. [Set Parameter Check] Set measuring conditions are parameter checked and if a value out of that scope is input, an error warning will show. Also a guide of the scope of input value is displayed.

More Information
Product Name Automatic Polarization System
PDF Downloads Automatic Polarization SYSTEM

Automatic Polarization System Operation Manual
Maximum Output Voltage 12V
Maximum Output Current 100mA
Range 8 ranges and AUTO range
USB Compatible Yes
Power Requirement AC 120V
