Marine Inboard Diesel Engine, 8-Cylinder, with Turbo Intercooler

In stock
SKU
N98-ND7950HI

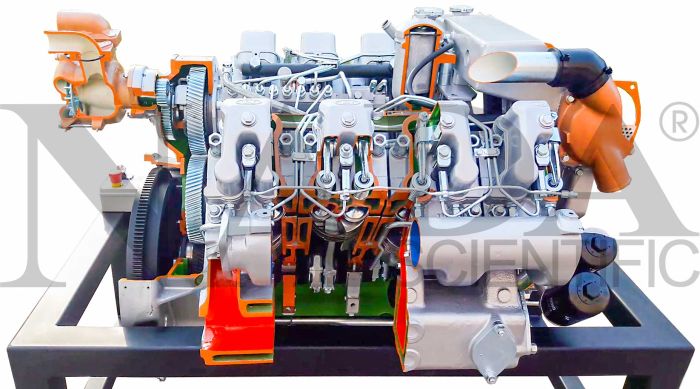

This product is a cut-away of a Marine Inboard Diesel Engine, 8-Cylinder, with Turbo Intercooler. It is operated electrically, and is mounted on a stand with wheels.

This product is a cut-away of a Marine Inboard Diesel Engine, 8-Cylinder, with Turbo Intercooler. It is operated electrically, and is mounted on a stand with wheels.

SPECIFICATIONS
• 4 stroke diesel engine
• Direct Injection
• Aspiration: Turbocharged - Interrefridgerated
• 8 cylinders
• Bore x stroke: 130 x 140mm
• Total displacement: 14858cm3
• Operates electrically at 120 volt
• Mounted on stand with wheels

STANDARD EQUIPMENT
• 4.8KW - 24V starter motor
• 45A - 28V alternator
• Lube-oil and fuel filter
• Air filter
• Freshwater engine cooling system with seawater heat exchanger
• Engine and reserve/reduction gear lubrication oil cooled by a seawater heat exchanger
• Freshwater cooled exhaust manifold
• Bronze seawater circulating pump
• Centrifugal pump for freshwater circulation
• Scavenge oil hand pump

PERFORMANCE
• Power pleasure boat DIN 6270 "B": 320 CV (235Kw) at 2000 rpm
• Power fishing boat DIN 6270 "A": 280 CV (205Kw) at 1800 rpm
• Fuel consumption: 162 gr/HP-hr

WEIGHT & DIMENSIONS:
Size: 120cm x 185cm x 150cm (L x W x H)
Net Weight: 1100 kg
Gross Weight: 1400 kg
