Motor Cultivator Cut-Away, Single-Cylinder Engine

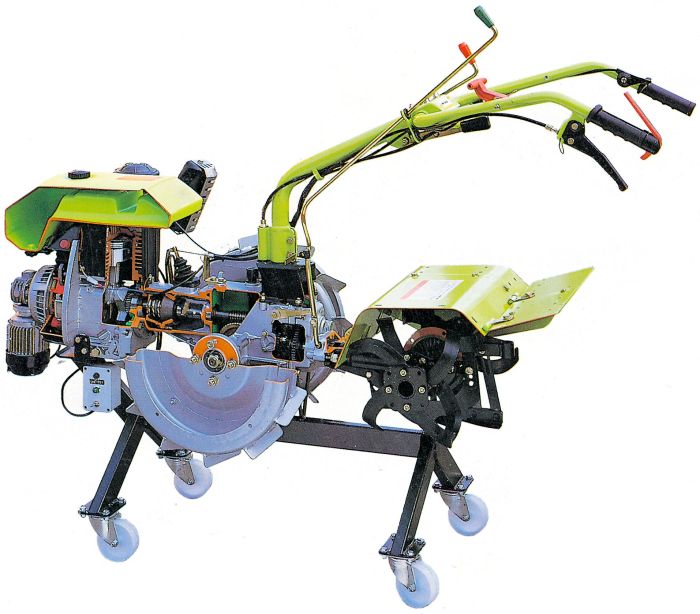

The cut-away model represents a modern Motor Cultivator with a gas-powered single-cylinder, air-cooled 6/10 hp engine.

The cut-away model represents a modern Motor Cultivator with a gas-powered single-cylinder, air-cooled 6/10 hp engine. It has been carefully sectioned for training purposes, professionally painted with different colors to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system, and other key components. Many parts have been chromium plated and galvanized for a longer life. The unit operates electrically and requires a 120 volt power source. It runs at a reduced speed to allow students to easily understand and observe the operation of the various mechanical parts.

SPECIFICATIONS:
• 4 stroke, single cylinder gas engine
• Power: 6 Kw
• Recoil starter
• Dry clutch with manual control
• Gearbox MTC 3+2
• Reverse command by lever
• PTO
• Adjustable handlebars
• Motor-stop safety device

WEIGHT AND DIMENSIONS:
Size: 70cm x 180cm x 110cm (L x W x H)
Net Weight: 100 kg
Gross Weight: 150 kg

More Information
Product Name Motor Cultivator Cut-Away, Single-Cylinder Engine
PDF Downloads Product Sheet for N98-ND8600
