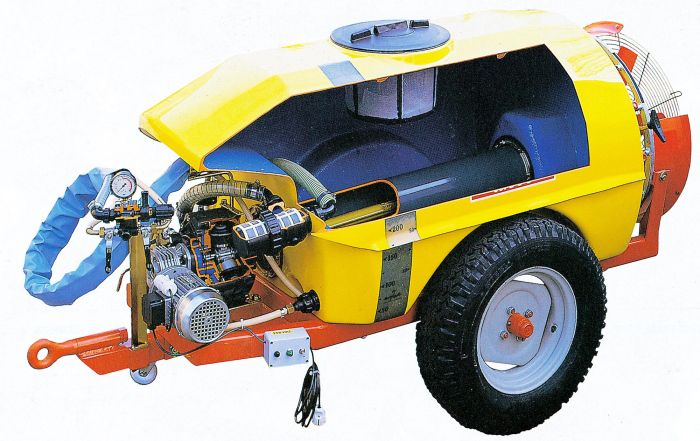

Sprayer Cut-Away, Agricultural

This cut-away has been carefully sectioned for training purposes and professionally painted with different colors to differentiate the various parts, cross-sections and lubricating circuits. Many parts have been chromium plated and galvanized for a longer life. This unit operates electrically and requires a 120 volt power source. It runs at a reduced speed to allow students to easily understand and observe the operation of the various mechanical parts.

SPECIFICATIONS:
• Agricultural sprayer; used to spray crops with fungicides
• Radial piston pump
• Fiberglass tank with filter
• Control unit
• Overdrive with fan
• Hydraulic stirrer
• Cardan shaft
• Adjustable nozzles
• Operates electrically at 120 volts

WEIGHT AND DIMENSIONS:
Size: 220cm x 110cm x 130cm (L x W x H)
Net Weight: 220 kg
Gross Weight: 330 kg
