Electric Panel for Lighting and Electronic Ignition System with Alternator

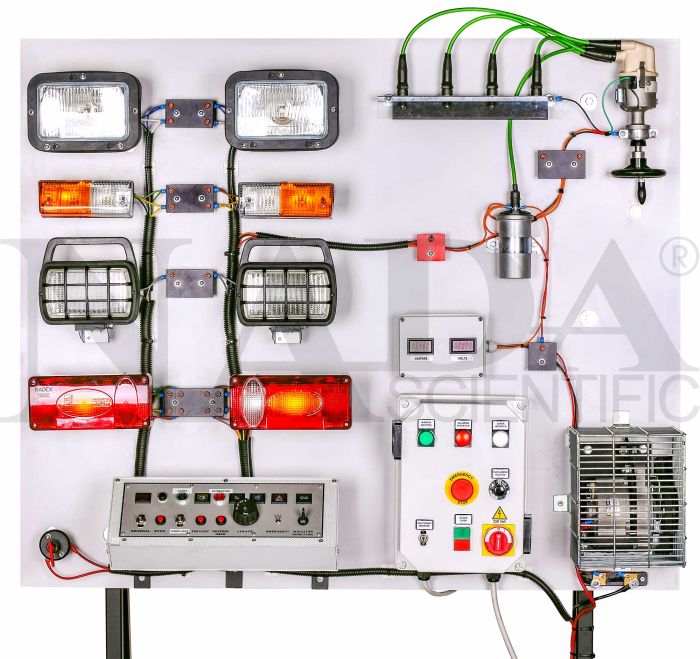

The new Electric Panel for Lighting and Electronic Ignition System with Alternator is mounted on a heavy-duty stand with casters. Students perform a multitude of hands-on tasks that cover essential electric system elements.
ASE Task: A6.A.2 - Identify electrical/electronic system components and configurations.
ASE Task: A6.A.6 - Demonstrate knowledge of the causes and effects from shorts, grounds, opens, and resistance problems in electrical/electronic circuits.
ASE Task: A6.A.9 - Use wiring diagrams during the diagnosis of electrical/electronic circuit problems.
ASE Task: A6.E.1 - Inspect interior and exterior lamps and sockets including headlights and auxiliary lights.
ASE Task: A6.E.3 - Diagnose the causes of brighter-than-normal, intermittent, dim, or no light operation.
ASE Task: A6.F.1 - Verify operation of instrument panel gauges and warning/indicator lights.
The new Electric Panel for Lighting and Electronic Ignition System with Alternator is mounted on a heavy-duty stand with casters. Students perform a multitude of hands-on tasks that cover essential electric system elements.
SPECIFICATIONS:
• Daytime Running Lights
• Low Beams
• High Beams
• Signal Lights
• Rear Fog Lights
• Brake Lights
• Reverse Lights
• Work Lights
• Relays
• Dashboard with Lights
• Four Spark Plugs
• High Tension Coil
• Electronic Distributor
• Battery with Isolator
• Functioning Alternator with Variable Speed Electric Engine
• Voltmeter
• Ampere Meter
• Pin Outs for Tension Values of Each Component
• Operates via battery and electrically at 220V, Single-Phase, 50 Amp.
WEIGHT AND DIMENSIONS:
Size: 130cm x 100cm x 206cm (L x W x H)
Net Weigh: 110kg
Gross Weight: 150kg
| Product Name | Electric Panel for Lighting and Electronic Ignition System with Alternator |
|---|---|
| PDF Downloads | Product Sheet for N98-ND9992 |
