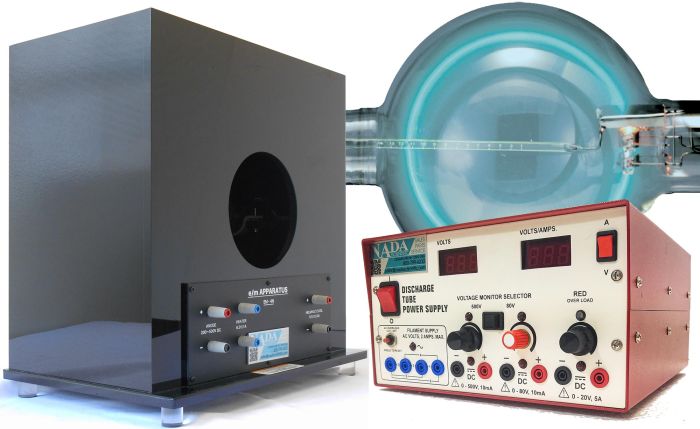

e/m Apparatus + Power Supply Combo

SAVE WITH THIS COMBO DEAL!

This combo includes:
• e/m Apparatus
• e/m Tube
• Power Supply for e/m Apparatus

Introducing our popular e/m Apparatus! Its body is made of durable high quality black acrylic resin. The e/m Apparatus allows students to clearly observe the effects of electric and magnetic fields on an electron stream. This compact instrument provides students a dramatic and visually pleasing experience. The large orbital electron path is circular and Helmholtz coils are integrated.

The e/m Tube has a built-in engraved glass rod with a scale along the central axis. This eliminates parallax when taking diameter readings of the electron orbit. You can observe the entire experiment through the front view hole or rear sliding panel.

SPECIFICATIONS:
• Vacuum Tube: - 130mm diameter - Helium gas - Integrated phosphor scale
• Helmholtz Coil: - 300mm diameter - 1mm wire 130 turns - Two parallel mounted coils with variable resistors to adjust current
• Anode: 200-500V
• Heater: 6.3V/1A
• Helmholtz coil: 12V DC/2A
• Durable high quality black acrylic resin body
• Sliding back cover
• Power Supply Sold Separately

Made in Japan

WEIGHT & DIMENSIONS:
Dimensions: 37cm x 25.5cm x 39cm (L x W x H)
Net Weight: 7 Kg

e/m Power Supply:

Take advantage of three independent DC output voltages and one selectable AC output with this exceptional power supply. This unit offers 0–20V DC, 0–80V DC, 0–500V DC, and 1.1–6.6V AC with different combinations all capable of being used simultaneously. Includes overload protection indicator, glass fuses at the input level, and one spare fuse in the main input socket.

SPECIFICATIONS:
• CSA approved
• AC/DC Ranges/Current: 0–20V DC/ 5A, 0-500V DC/ 10mA, 0–80V DC/ 10mA, 1.1, 2.2, 3.3, 4.4, 5.5, 6.6V AC/ 2A.
• Load: 0-100% at 100mV variations
• Line regulation 105-130V AC at 200mV variations.
• Protection: Unit is properly earthed and tested for high voltage insulation test, burn test, and leakage test.
• Ripple and noise: 40mVrms
• Power requirements: 120V AC, 220V AC, 60Hz.
• Dimensions: 26cm x 24cm x 14cm
