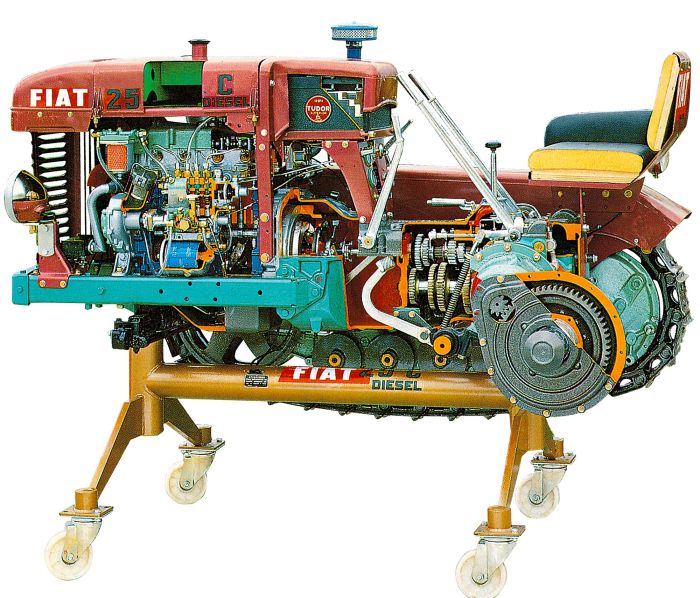

Farm Tractor Cut-Away, Track-Type, 4-Stroke Diesel Engine, Fiat 25C
This cut-away has been carefully sectioned for training purposes and professionally painted with different colors to differentiate the various parts, cross-sections and lubricating circuits. Many parts have been chromium plated and galvanized for a longer life. This unit operates electrically and requires a 120 volt power source. It runs at a reduced speed to allow students to easily understand and observe the operation of the various mechanical parts.
SPECIFICATIONS:
• 4 stroke 4 cylinder engine
• Displacement; 2,000cc
• Indirect injection
• Water cooled
• Overhead valves
• In-line injection pump
• Multiple plate steering clutch
• Gearbox: 4 forward speeds + reverse
• Operates electrically at 120 volts
• Mounted on stand with wheels
WEIGHT AND DIMENSIONS:
Size: 230cm x 132cm x 180cm (L x W x H)
Net Weight: 910 kg
Gross Weight: 1200 kg
Product Name | Farm Tractor Cut-Away, Track-Type, 4-Stroke Diesel Engine, Fiat 25C |
---|---|
PDF Downloads | Product Sheet for N98-ND8350 |
