Overhead Camshaft Engine with Toothed Timing Belt

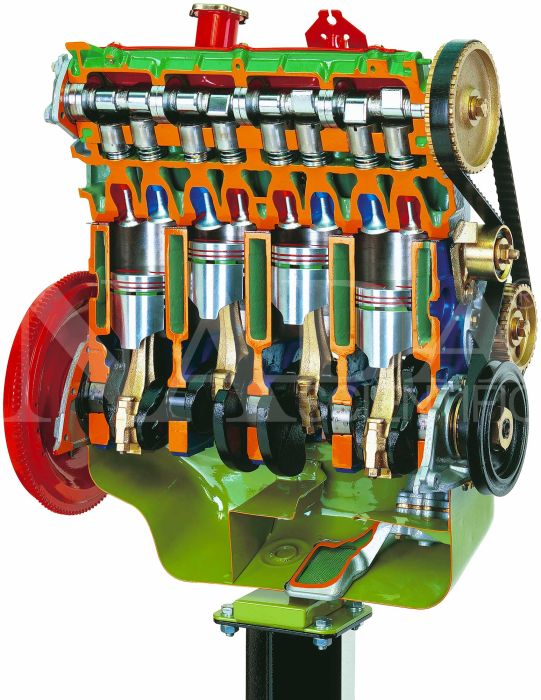

This product is a cut-away of an engine with an overhead camshaft and toothed timing belt. This cut-away is carefully sectioned for training purposes and professionally painted with different colors to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system, etc. Many parts have been chromium plated and galvanized for a longer life. It is operated manually by hand crank, and is mounted on a stand with wheels.

SPECIFICATIONS:
• 4-Stroke gas engine, Inline-4
• Overhead camshaft (OHC)
• Toothed timing belt
• Bore: 70mm
• Stroke: 72mm
• Displacement: 1108cc
• Compression Ratio: 9,6:1
• Power: 54 cv, 40 kw
• Operates manually by hand crank
• Mounted on a stand with wheels

WEIGHT AND DIMENSIONS:
Size: 67cm x 48cm x 95cm (L x W x H)
Net Weight: 60 kg
Gross Weight: 100 kg
